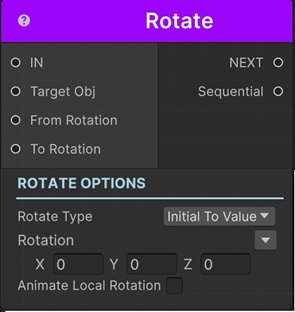

Rotate Sequential
This sequential rotates a transform with animation.
Base Properties
To learn about the common Base Properties, please see Base Sequential
Target Object Options
This sequential derives from Object Returner Sequential and gets all its properties from that sequential. So, to learn about the Target Object Options please see Object Returner Sequential
Animation Options
This sequential derives from Animation Sequential and gets all of its properties. So, to learn about the __Animation Options please see Animation Base
Rotate Type
This option determines the calculation of the end value of the rotate action.
Initial to Value
This rotates the target transform from its initial value (the value before this sequential starts) to the Rotation.
From Value to Initial
This instantly sets the rotation of the target transform to the Rotation and then rotates it to its initial value again.
Initial Plus Value
This adds Rotation to the target transform's initial rotation value and rotates it to the calculated value.
For example, to rotate a transform 10 degrees on X axis and 20 degrees on Y axis, but if you don't know the exact target rotation you can use this option with Rotation (10, 20, 0).
Initial Multiply Value
This multiplies each axis of the transform's initial rotation with the corresponding axis of the Rotation and rotates the target transform to the calculated rotation.
From A to B
This lets you define the starting rotation and end rotation of the rotate animation independent from the initial rotation of the target transform.
Rotation
This is the Vector3 value (in degrees) that determines the end rotation in accordance with the Rotate Type option as explained above.
It's possible to assign different kind of values to this property (e.g. directly, randomly, from variable).
For example, to rotate the target transform to the rotation of another transform, you can select Another Transform or Sequential for the value assigning option and then choose the transform to match the rotation.
Info
To learn more about assigning values with different options, see Value Assign
Tip
When you assign Rotation with Sequential option, you need to connect the related sequential's Sequential output port to this sequential's To Rotation input port.
From Rotation
This is only available when the Rotate Type is From A to B.
This is the starting rotation of the rotate animation.
Tip
When you assign From Rotation with Sequential option, you need to connect the related sequential's Sequential output port to this sequential's From Rotation input port.
Closest Path
This calculates the minimum angle difference to reach to the target rotation angle and rotates the transform accordingly.
For example, say you want to rotate a transform from 270 to 0. By default this sequential rotates the transform backwards to 0 (270, 260, 250 ... 0). But if this option is checked, it will rotate to 360 instead of 0 because this path is faster (270, 280, ... 360) and it's the same target angle.
Animate Local Rotation
By default, this sequential rotates the target transform by modifying its transform.rotation property. But sometimes you might need to modify its local rotation. So if you enable this option, it modifies transform.localRotation instead.
